Enhance coral fluorescence and add focused actinic illumination with the Orphek OR4 iCon Violet Reef Aquarium LED Bar.

This specialized OR4 model concentrates its output in the 420–430 nm violet range. It is designed to complement full-spectrum reef lighting, intensify fluorescent coral pigments and add targeted violet wavelengths that may be limited in standard aquarium fixtures.

Use it alongside an Orphek Natura iCon, Atlantik iCon or another reef light, or combine multiple OR4 bars to create a customized lighting system.

Focused Violet Actinic Spectrum

The OR4 iCon Violet concentrates its output in the 420–430 nm wavelength range for strong actinic fluorescence without the deeper near-UV wavelengths found in the OR4 iCon UV/Violet model.

This spectrum is ideal for:

• Enhancing coral fluorescence and color

• Supplementing full-spectrum reef lighting

• Adding focused violet wavelengths

• SPS, LPS, soft coral and mixed reef aquariums

• Dawn, dusk and evening viewing

• Coral growth and coloration programs

• Building a customized multi-bar lighting system

Intelligent iCon Control

The included iCon dimming driver provides Wi-Fi and Bluetooth connectivity through the Orphek iCon app.

Features include:

• Programmable lighting schedules

• Adjustable overall intensity

• Sunrise and sunset transitions

• Sun and Moon Synchronization

• Seasonal calendar programming

• Time-offset control

• Integration with compatible Orphek iCon lighting

• iOS and Android compatibility

Each OR4 bar functions as one dimmable channel. The complete bar dims together; individual LEDs are not independently adjustable. Multiple compatible bars may be controlled independently through the app.

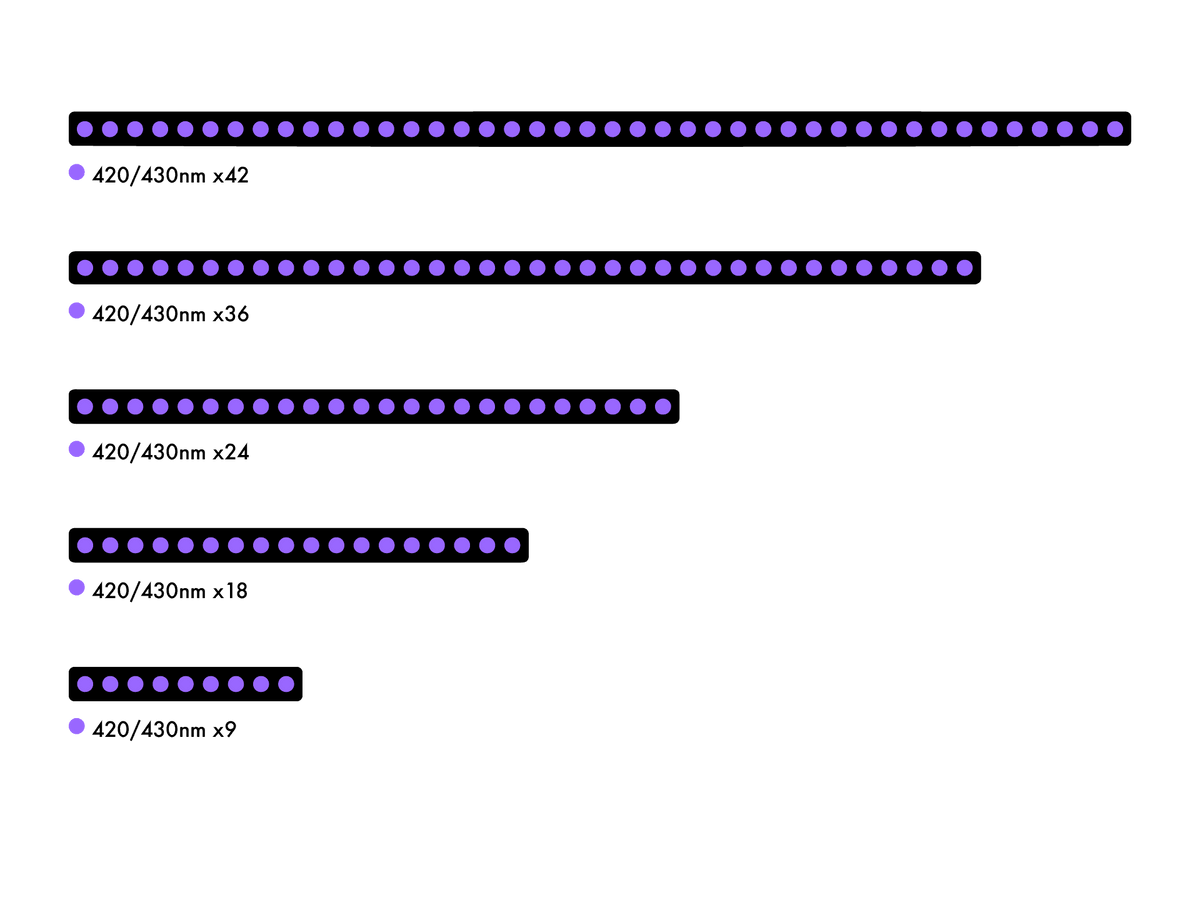

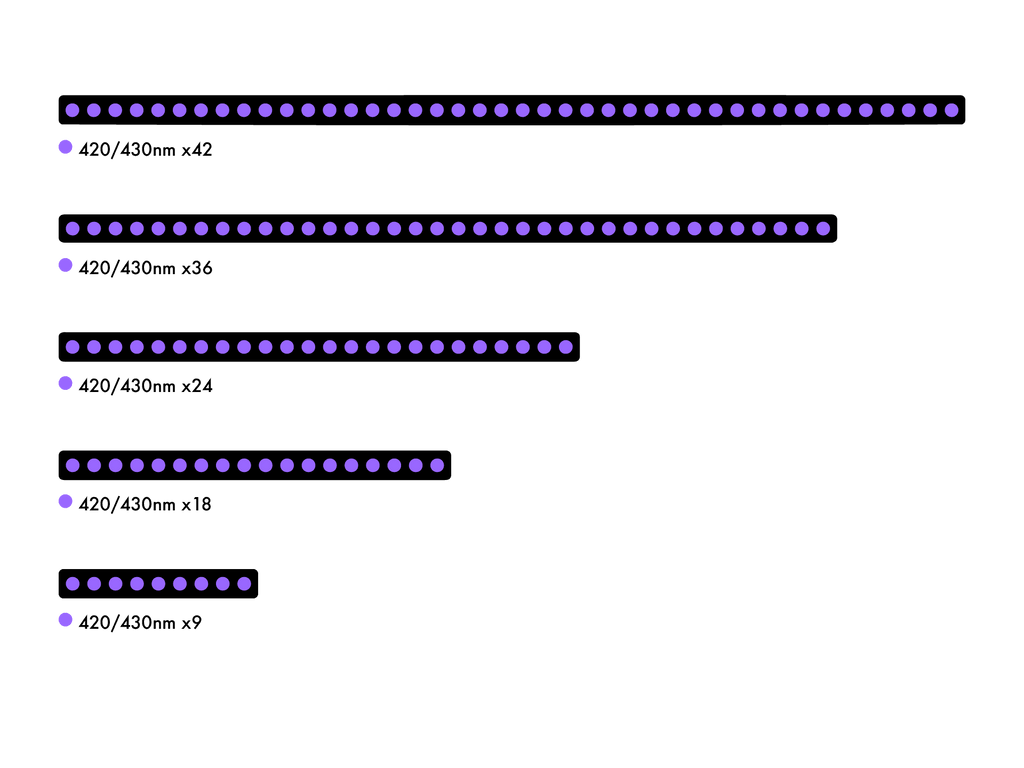

Available Sizes

OR4 30

Nominal Length: 12 Inches / 30 cm
Actual Length: 13.2 Inches
LEDs: 9 Dual-Chip LEDs / 18 Chips
Power Consumption: 15 Watts

OR4 60

Nominal Length: 24 Inches / 60 cm
Actual Length: 25 Inches
LEDs: 18 Dual-Chip LEDs / 36 Chips
Power Consumption: 30 Watts

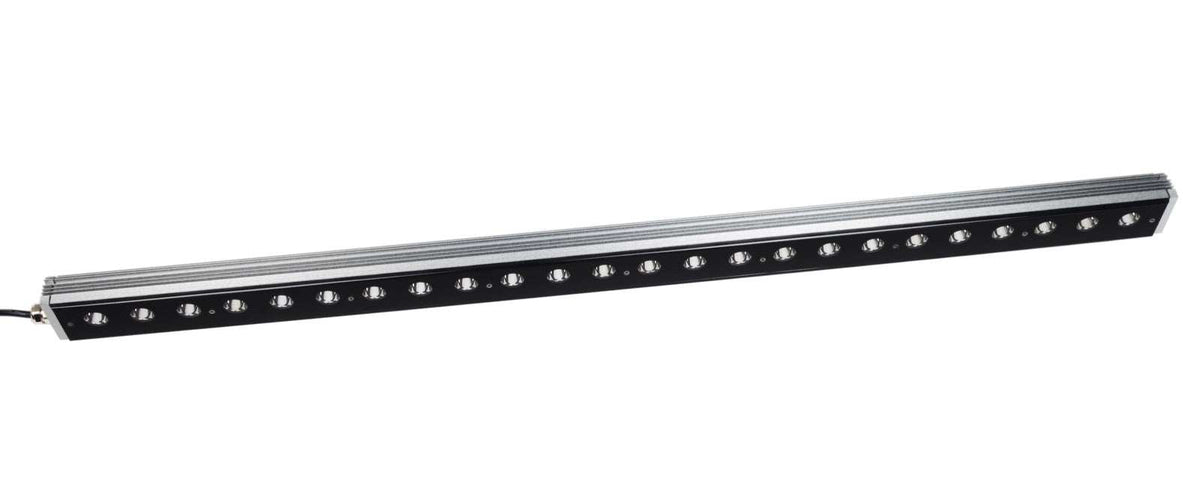

OR4 90

Nominal Length: 36 Inches / 90 cm
Actual Length: 36.8 Inches
LEDs: 24 Dual-Chip LEDs / 48 Chips
Power Consumption: 40 Watts

OR4 120

Nominal Length: 48 Inches / 120 cm
Actual Length: 48.7 Inches
LEDs: 36 Dual-Chip LEDs / 72 Chips
Power Consumption: 60 Watts

OR4 150

Nominal Length: 60 Inches / 150 cm
Actual Length: 60.4 Inches
LEDs: 42 Dual-Chip LEDs / 84 Chips
Power Consumption: 75 Watts

All sizes measure approximately 1.97 inches wide and 1.4 inches high.

Electrical Specifications

Spectrum Range: Approximately 420–430 nm
Input Voltage: 100–230V AC
Frequency: 50–60 Hz
Power Factor: Greater Than 95%
Construction: Aluminum Alloy and Acrylic
Water-Resistance Rating: IP67

What’s Included

• One OR4 iCon Violet LED bar

• One iCon dimming driver

• One waterproof connector

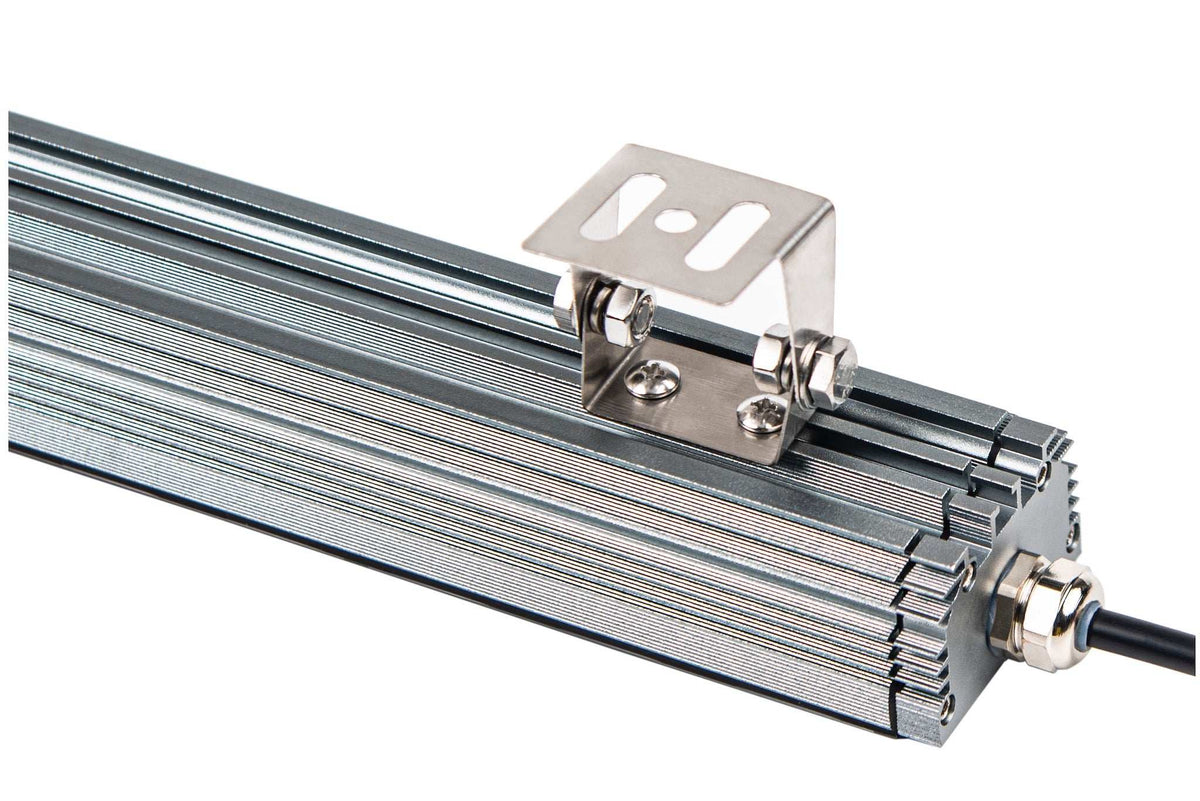

• Two mounting brackets

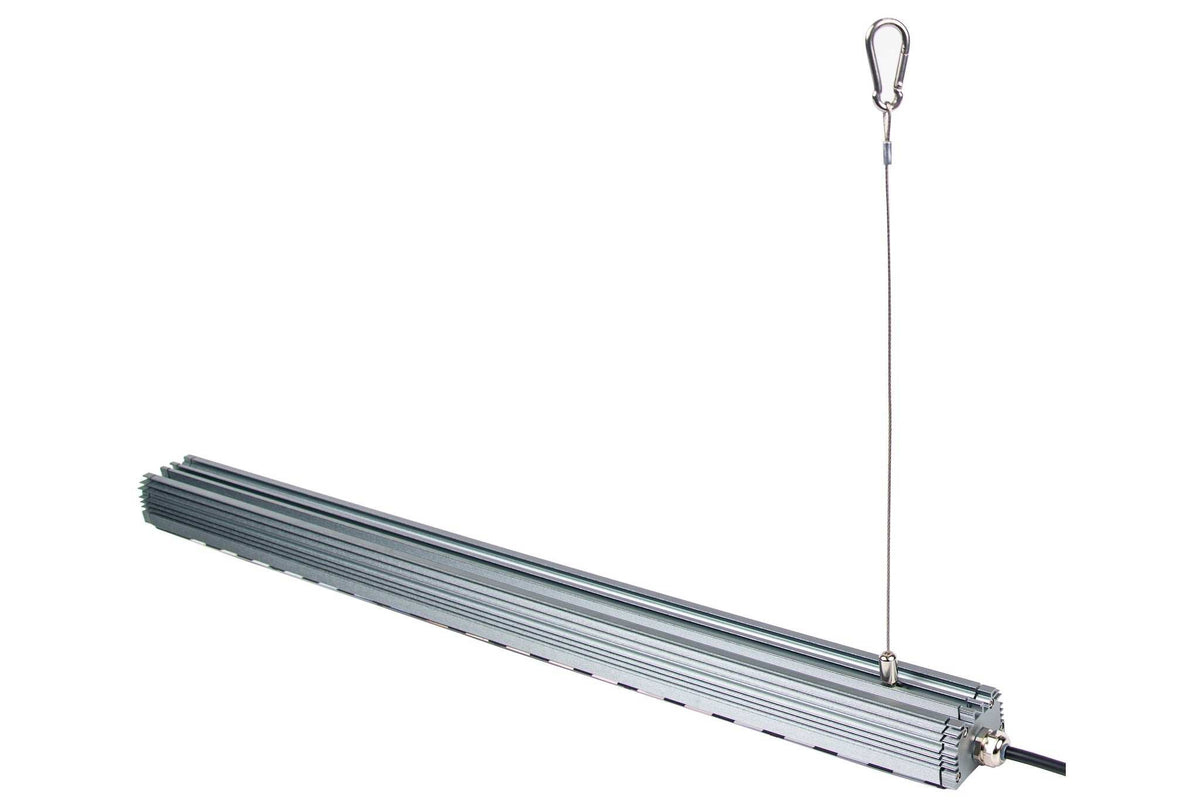

• Two hanging cords

• Region-appropriate power connection

Additional mounting arms, extension kits and specialized mounting accessories are sold separately.

Selecting the Correct Size

Choose the bar that most closely matches the illuminated length of your aquarium. Multiple bars may be combined for broader coverage, increased intensity or a customized spectrum.

Violet lighting should be introduced gradually when added to an established reef aquarium. Begin at a reduced intensity and increase slowly while monitoring coral response.
