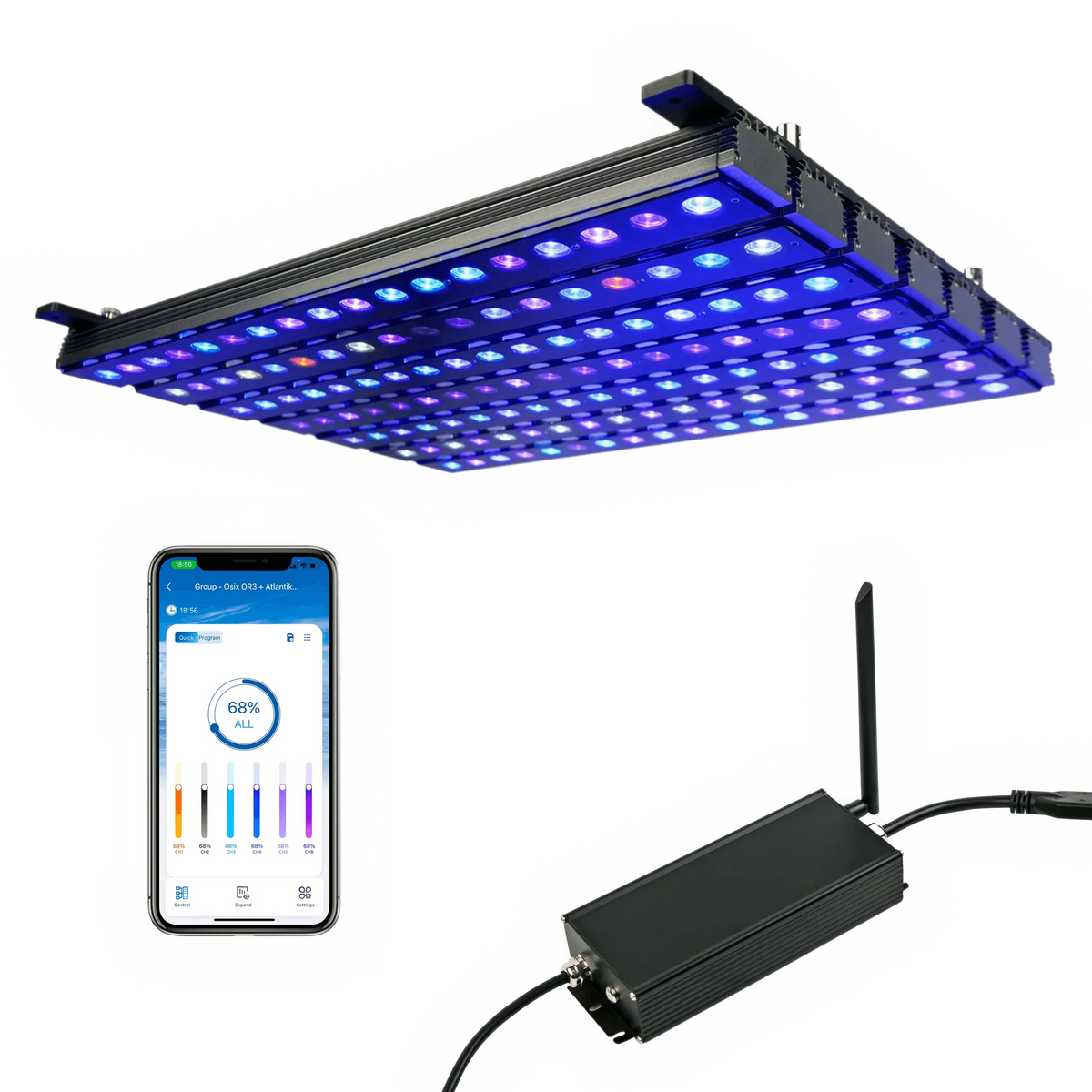

Control up to six compatible Orphek OR LED bars independently with the Orphek Osix iCon Smart Wi-Fi Controller.

The Osix combines a six-channel controller, high-capacity power supply and intelligent app connectivity into one streamlined system. Each connected LED bar becomes an independently programmable channel, allowing multiple OR-bar spectrums to be combined into a customized aquarium-lighting fixture.

One controller, one power supply and one electrical outlet can operate as many as six compatible OR LED bars.

LED bars are sold separately.

Six Independently Controlled Bars

The Osix provides six separate lighting channels.

Each connected OR LED bar operates as one channel with independently adjustable intensity and programming. The six channels do not provide individual diode control within a single LED bar.

For example, a system using Reef Day Plus, Blue Plus, Blue Sky and UV/Violet bars can assign each bar its own intensity and lighting schedule.

Orphek iCon App Control

Connect the Osix to the free Orphek iCon app for iOS and Android.

Available features include:

• Independent control of up to six OR LED bars

• Wi-Fi connectivity

• Individual intensity adjustment

• Custom 24-hour lighting schedules

• Sunrise and sunset transitions

• Sun and Moon Synchronization

• Automatic lunar-cycle simulation

• Advanced lunar-brightness control

• Time-offset adjustment

• Seasonal calendar programming

• Remote monitoring and control

• Software and feature updates

Select the Correct Osix Model

The Osix model must match the length of the connected OR LED bars.

• Osix 60 operates compatible 24-inch / 60 cm bars

• Osix 90 operates compatible 36-inch / 90 cm bars

• Osix 120 operates compatible 48-inch / 120 cm bars

• Osix 150 operates compatible 60-inch / 150 cm bars

Do not connect different OR-bar lengths to the same Osix controller.

There is no Osix model for OR4 30 bars.

Compatibility

Direct OR4 Compatibility

• OR4 60 requires Osix 60

• OR4 90 requires Osix 90

• OR4 120 requires Osix 120

• OR4 150 requires Osix 150

Previous-Generation OR Bars

• OR, OR2 and OR3 60 are compatible with Osix 60

• OR, OR2 and OR3 120 are compatible with Osix 120

• Previous-generation 90 and 150 bars may require an upgrade before use

Contact us before ordering an Osix for older OR, OR2 or OR3 90 and 150 bars.

Power-Supply Capacity

Osix 60: Approximately 170 Watts
Osix 90: Approximately 230 Watts
Osix 120: Approximately 310 Watts
Osix 150: Approximately 450 Watts

Input Voltage: 100–240V AC
Frequency: 47–63 Hz
Power Factor: Greater Than 95%

Cable Lengths

Main Power Cord: Approximately 57.8 Inches

Six Channel Cables: Approximately 78.7 Inches Each

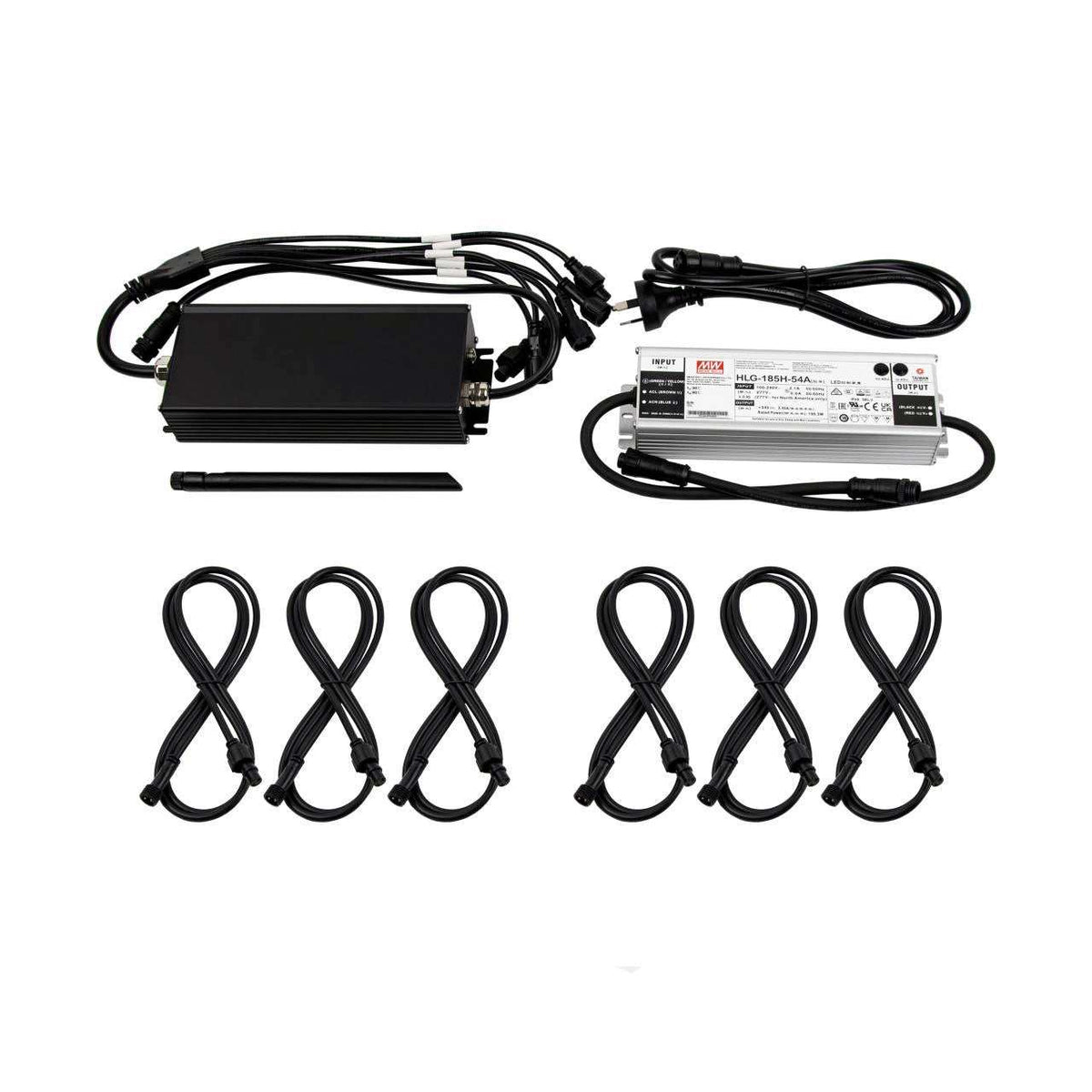

What’s Included

• One Osix iCon controller

• One wireless antenna

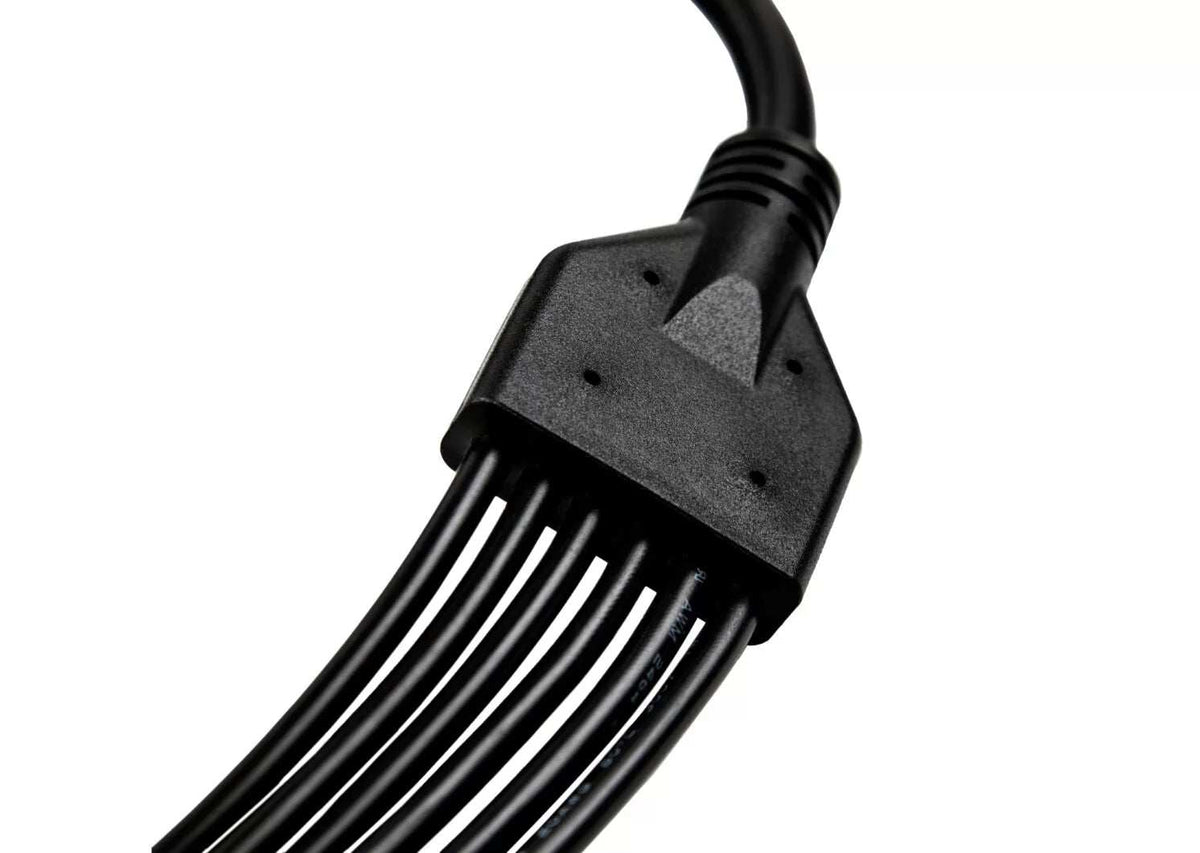

• Six controller cables

• One model-specific power supply

• One region-appropriate electrical cable and plug

Orphek OR LED bars and mounting hardware are sold separately.

Direct Manufacturer Fulfillment

This product ships directly from Orphek.

Fulfillment location depends on current inventory. Orders may ship from United States stock or Orphek’s international warehouse. Internationally fulfilled orders may require additional processing and transit time.

Availability and estimated delivery timing will be confirmed after your order is placed. Tracking will be provided once the order ships.

Orders cannot be canceled after they have been transferred to the manufacturer for processing.
