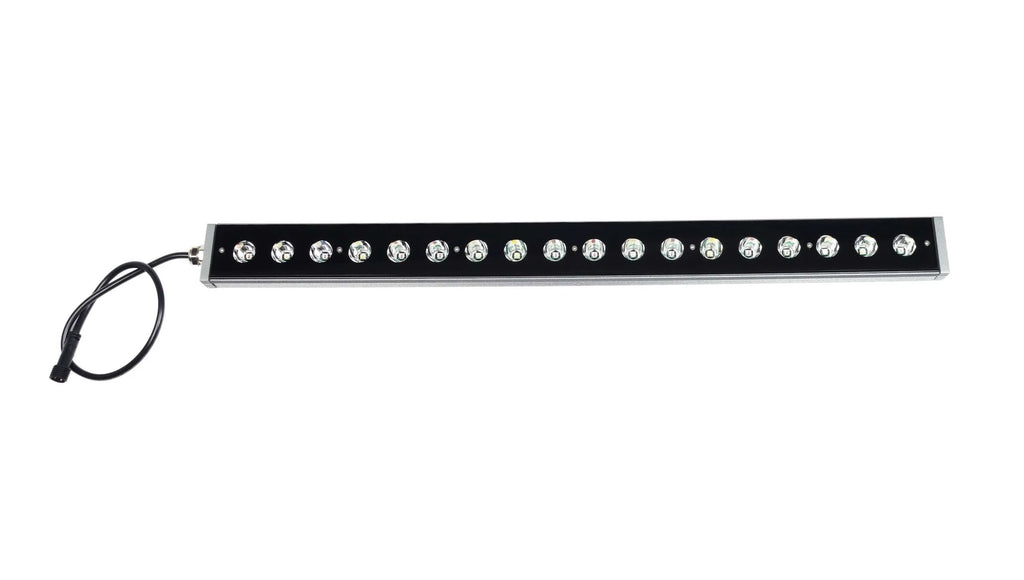

Deliver powerful daytime illumination, balanced coral coloration and broad full-spectrum output with the Orphek OR4 iCon Reef Day Plus LED Bar.

The Reef Day Plus produces an approximately 18,000K appearance across a 390–680 nm spectrum. It combines crisp white daylight with violet, royal-blue and blue wavelengths to support coral growth while providing a bright, natural view of the entire aquarium.

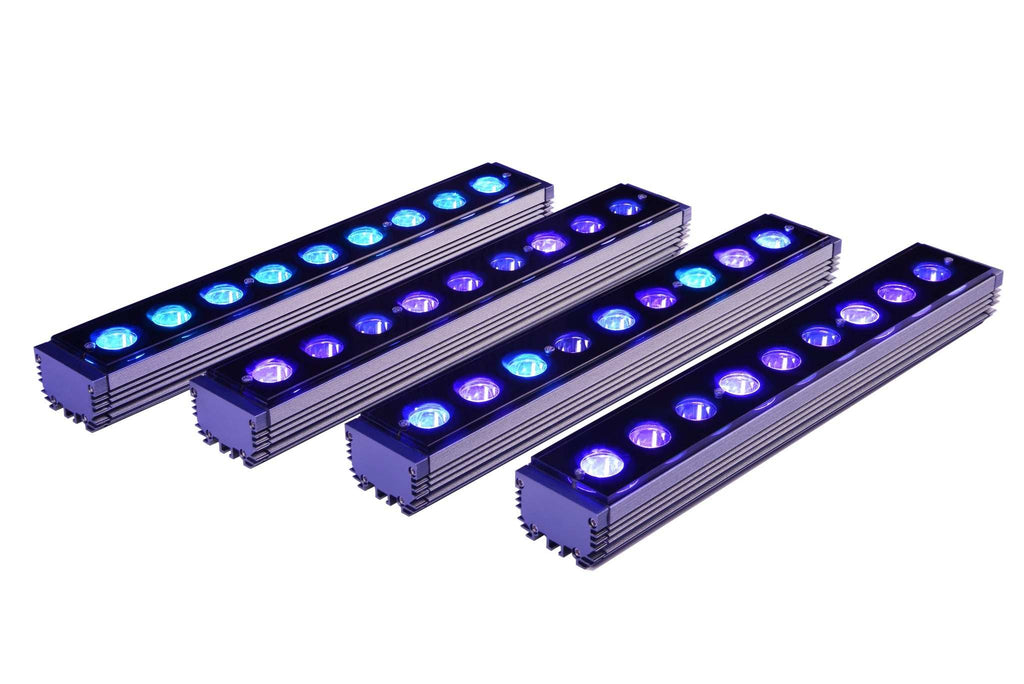

Use it as supplemental lighting with an Orphek Natura iCon, Atlantik iCon or another reef fixture, or combine multiple OR4 bars to build a customized lighting system.

Full-Spectrum Reef Lighting

The Reef Day Plus spectrum is designed to support SPS, LPS, soft coral and mixed reef systems.

Benefits include:

• Broad 18,000K full-spectrum output

• Approximately 390–680 nm spectral coverage

• Strong PAR and even light distribution

• Support for coral growth, health and coloration

• Natural daytime aquarium viewing

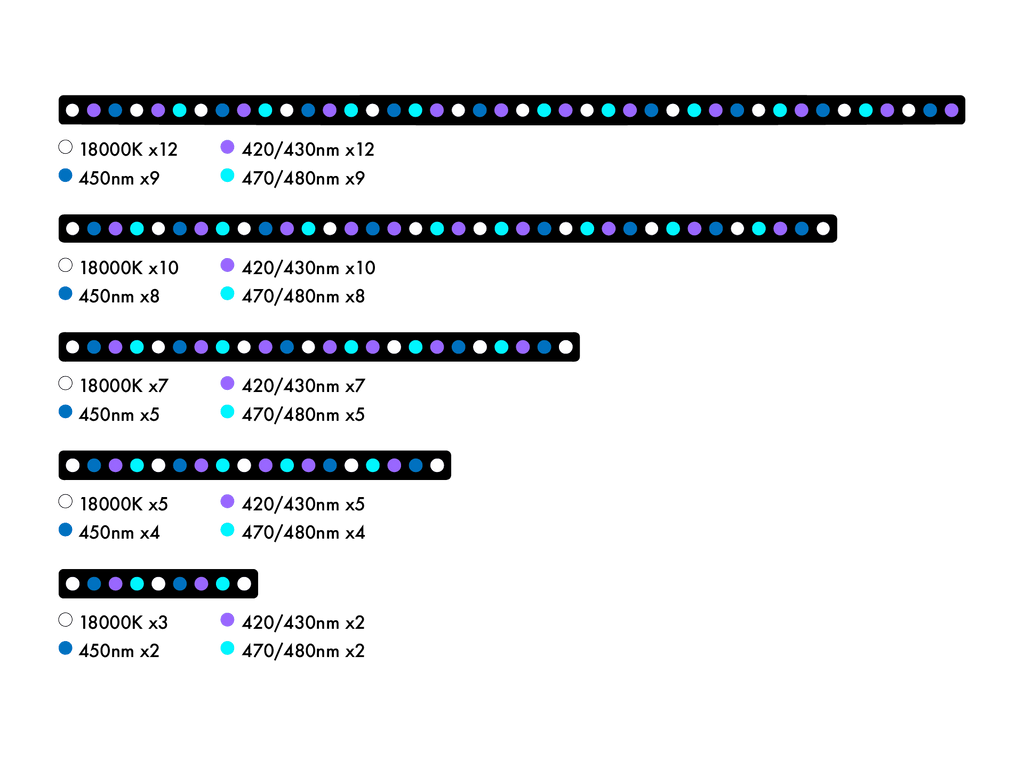

• Mixed-color dual-chip LED technology

• Reduced color separation and improved blending

• Five available lengths from 12 to 60 inches

Intelligent iCon Control

The included iCon dimming driver provides Wi-Fi and Bluetooth connectivity through the Orphek iCon app.

Features include:

• Programmable lighting schedules

• Adjustable overall intensity

• Sunrise and sunset transitions

• Sun and Moon Synchronization

• Seasonal calendar programming

• Time-offset control

• Integration with compatible Orphek iCon lighting

• iOS and Android compatibility

Each OR4 bar operates as one dimmable channel. The complete bar dims together; its individual LED colors are not separately adjustable. Multiple compatible bars may be controlled independently through the app.

Available Sizes

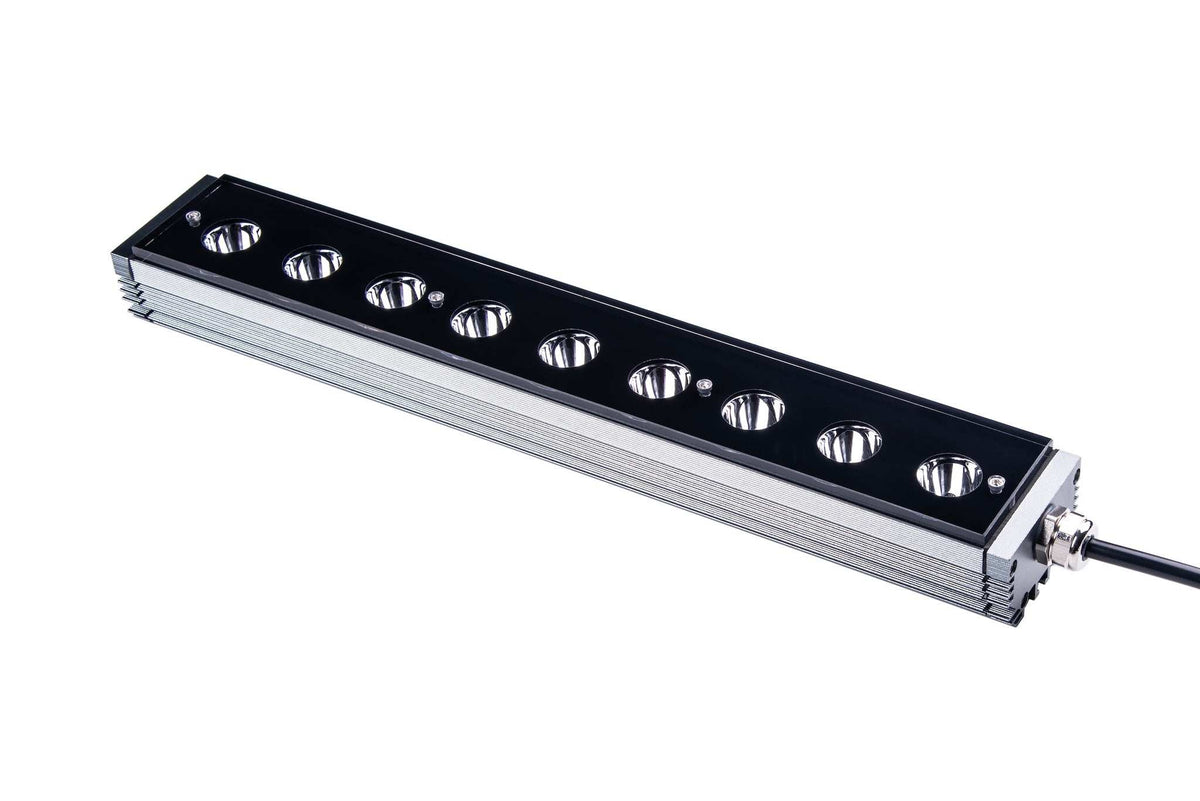

OR4 30

Nominal Length: 12 Inches / 30 cm
Actual Length: 13.2 Inches
LEDs: 9 Dual-Chip LEDs / 18 Chips
Power Consumption: 15 Watts

OR4 60

Nominal Length: 24 Inches / 60 cm
Actual Length: 25 Inches
LEDs: 18 Dual-Chip LEDs / 36 Chips
Power Consumption: 30 Watts

OR4 90

Nominal Length: 36 Inches / 90 cm
Actual Length: 36.8 Inches
LEDs: 24 Dual-Chip LEDs / 48 Chips
Power Consumption: 40 Watts

OR4 120

Nominal Length: 48 Inches / 120 cm
Actual Length: 48.7 Inches
LEDs: 36 Dual-Chip LEDs / 72 Chips
Power Consumption: 60 Watts

OR4 150

Nominal Length: 60 Inches / 150 cm
Actual Length: 60.4 Inches
LEDs: 42 Dual-Chip LEDs / 84 Chips
Power Consumption: 75 Watts

All sizes measure approximately 1.97 inches wide and 1.4 inches high.

Electrical Specifications

Input Voltage: 100–230V AC
Frequency: 50–60 Hz
Power Factor: Greater Than 95%
Construction: Aluminum Alloy and Acrylic
Water-Resistance Rating: IP67

What’s Included

• One OR4 iCon Reef Day Plus LED bar

• One iCon dimming driver

• One waterproof connector

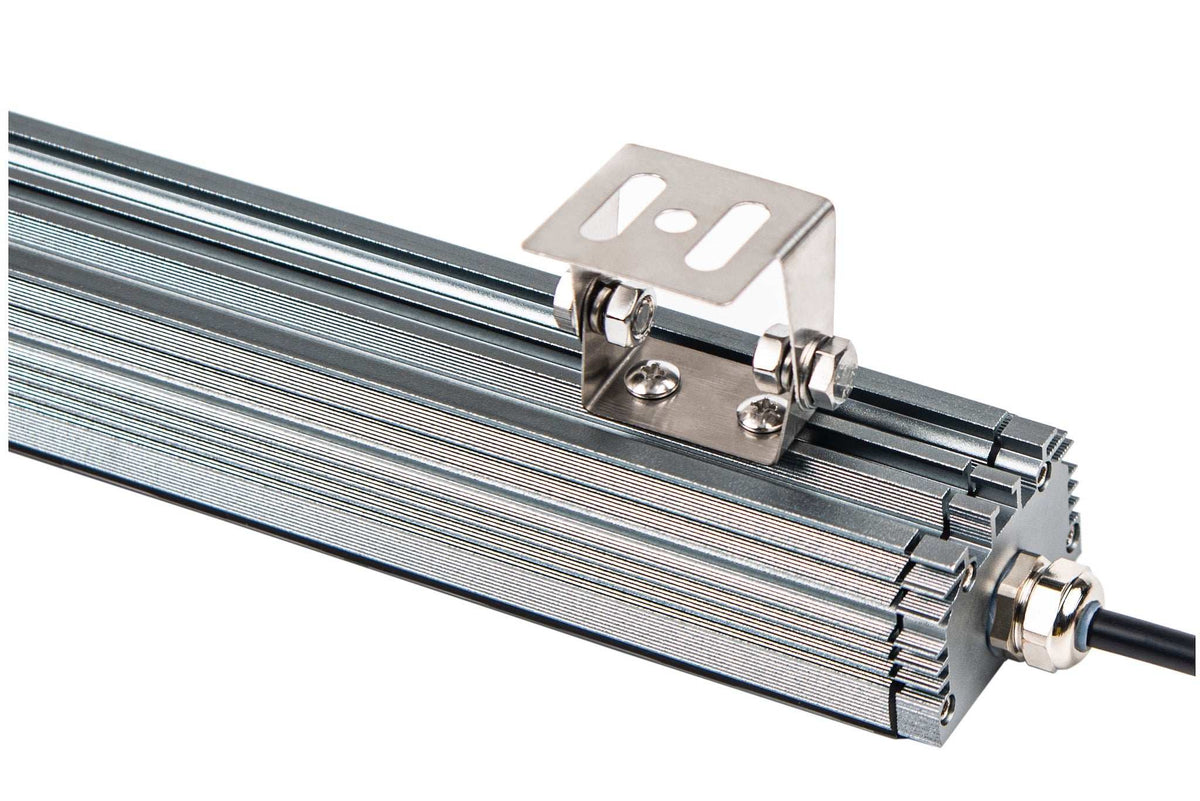

• Two brackets

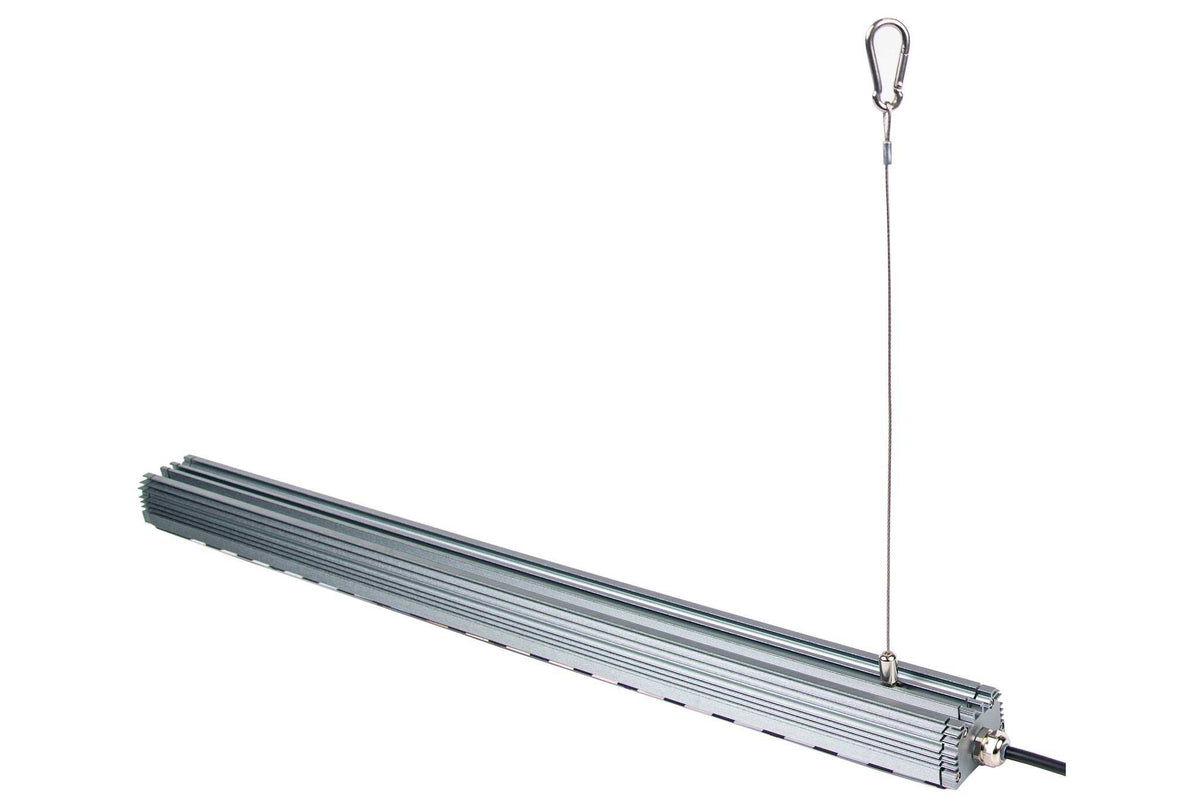

• Two hanging cords

• Region-appropriate power connection

Additional mounting arms, extension kits and specialized mounting accessories are sold separately.

Selecting the Correct Size

Choose the bar that most closely matches the illuminated length of your aquarium. Multiple bars may be combined for wider coverage, greater intensity or a customized spectrum.

Lighting requirements vary depending on tank dimensions, mounting height, aquascape, coral placement and other installed lighting. Contact us before ordering if you need help selecting the correct size or quantity.

Direct Manufacturer Fulfillment

This product ships directly from Orphek.

Fulfillment location depends on current inventory. Orders may ship from United States stock or Orphek’s international warehouse. Internationally fulfilled orders may require additional processing and transit time.

Availability and estimated delivery timing will be confirmed after your order is placed. Tracking will be provided once the order ships.

Orders cannot be canceled after they have been transferred to the manufacturer for processing.
