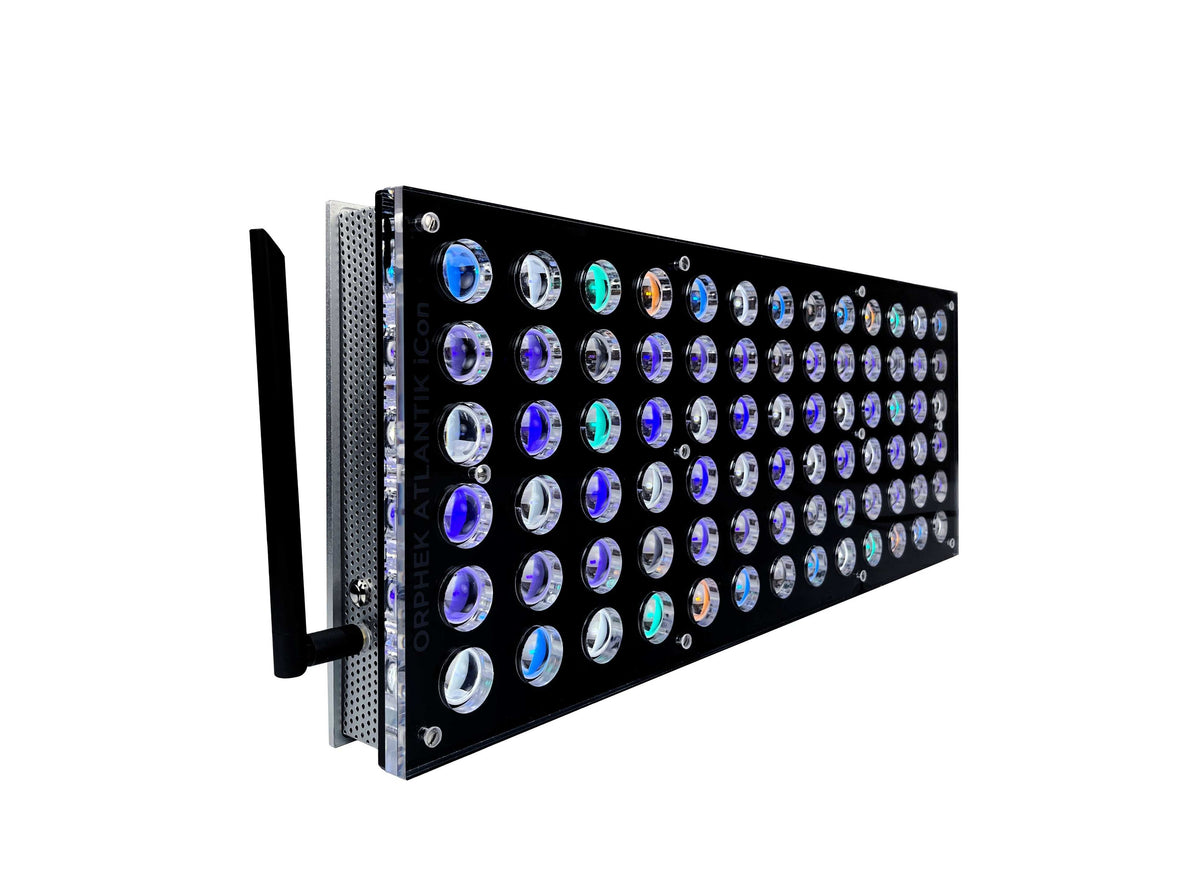

Orphek Atlantik iCon Reef Aquarium LED Light

Light a larger reef with the Atlantik iCon's wide coverage, six separately adjustable channels and app-controlled schedule. Orphek designed this full-size fixture for an approximately 48 × 30 inch (120 × 75 cm) SPS or LPS aquarium, giving you room to tune coral-focused light and the overall look of the tank.

What makes the Atlantik iCon different?

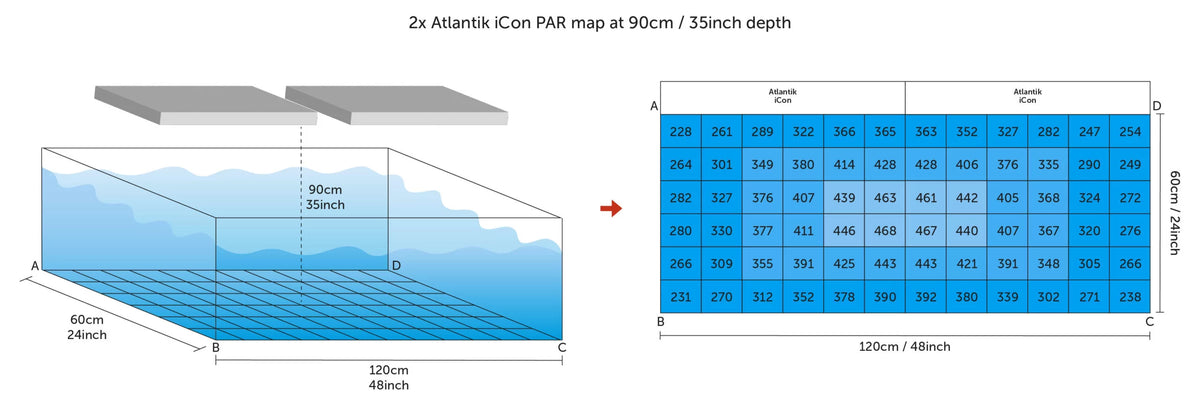

• Broad reef coverage: Orphek specifies a 48 × 30 inch SPS/LPS footprint. Actual placement and the number of fixtures depend on your aquascape, mounting height and coral light needs.
• Six independent channels: Balance white, cyan, blue, violet and UV/violet output while choosing the appearance you prefer.

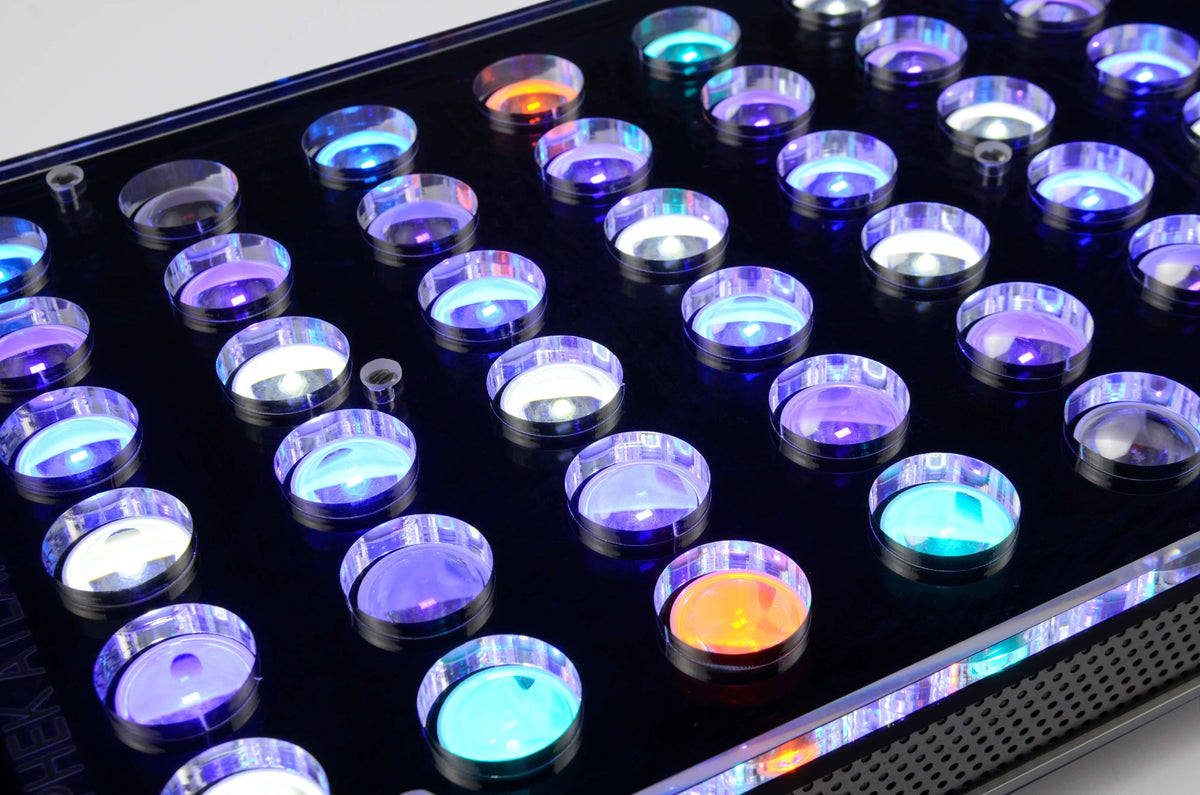

• LED array: 78 custom 5 W dual-chip LEDs, totaling 156 individual LED chips, with 13 dual-chip LEDs per channel.
• Power consumption: approximately 218–235 W.
• App control: Program individual fixtures or groups through the Orphek iCon app for iOS and Android.

Program a full day over your reef

Use the iCon app to build your own photoperiod or start with Orphek's programmed lighting. The fixture supports daylight and lunar programs as well as cloud and acclimation options. Local and remote control, Wi-Fi, Bluetooth and hotspot sharing offer different ways to manage the light. Adjust intensity gradually when changing a coral's lighting.

Spectrum graphs: see what each channel adds

These are the six channel graphs you added. Each channel controls a different part of the spectrum, making it easier to adjust color without treating the entire fixture as one brightness slider.

Channel 1: Sunrise and Sunset

Warmer white and amber tones for the beginning and end of the day, with the manufacturer's 730 nm infrared component.

Channel 2: Solar Noon

A brighter white daylight look with a cyan component for the middle of the lighting schedule.

Channel 3: Cyan Blue

The 470 and 490 nm range adds blue-green balance and a clear-water appearance.

Channel 4: Blue

Deep blue output centered near 447 nm for the familiar reef display look.

Channel 5: Violet

Approximately 420–430 nm violet light that contributes to the appearance of coral fluorescence.

Channel 6: UV/Violet

Approximately 400–415 nm output for the short-wavelength portion of the fixture's spectrum. Some emitters can look faint to the eye even when operating.

Built for long lighting schedules

The fixture combines an aluminum heat sink and top cover with controllable fans to move heat away from the LED array. Orphek lists a Mean Well power supply and waterproof connector. A stainless-steel hanging kit is included; alternative mounting arms, brackets and extension cables are separate accessories.

In the box

• Atlantik iCon fixture
• Mean Well power supply and regional power cord
• Power connection with waterproof connector
• Stainless-steel hanging kit

Why buy from Infinity & Beyond Aquatics? Tell us your tank dimensions, aquascape and coral mix and we'll help plan the number of fixtures, mounting layout and starting light schedule.

Shipping: Ships under our Large Items equipment shipping rate, shown at checkout. Manufacturer fulfillment timing may vary.
