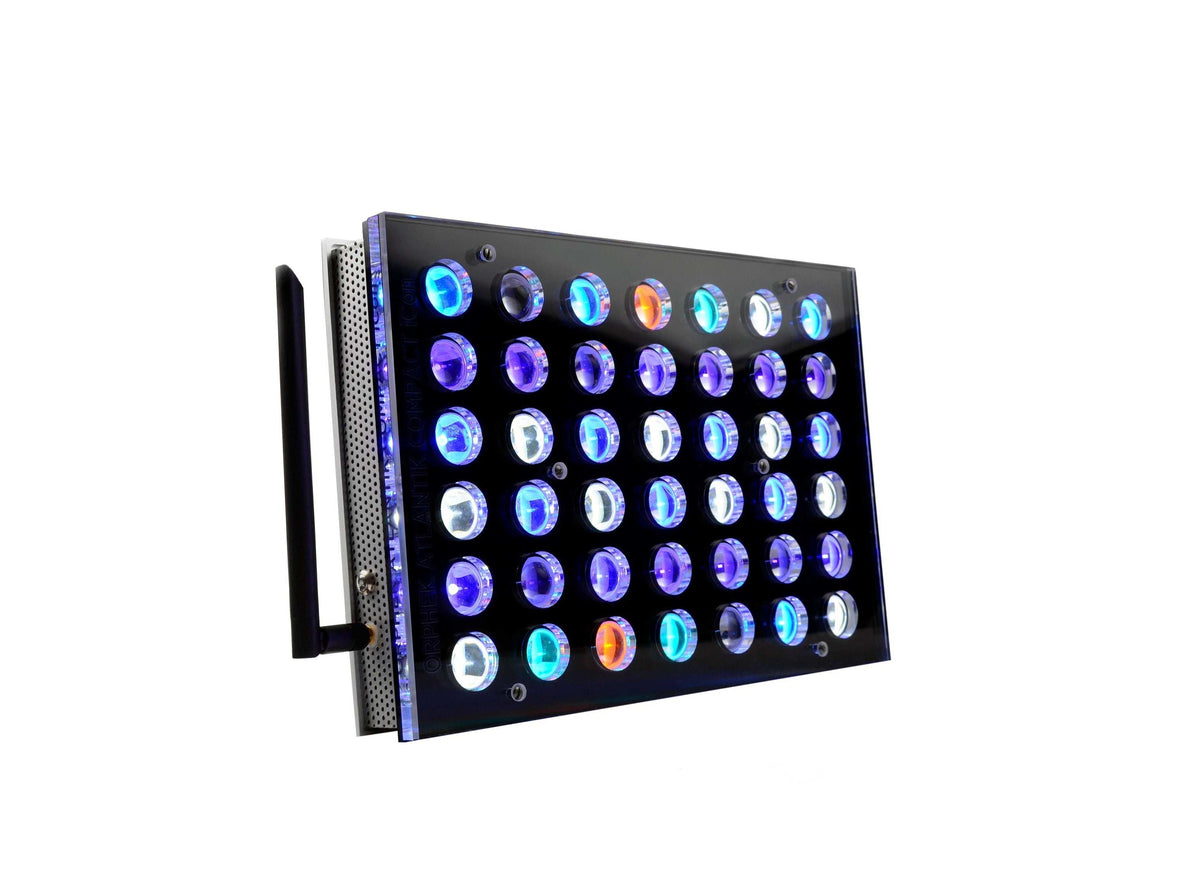

Orphek Atlantik iCon Compact Reef Aquarium LED Light
The Atlantik iCon Compact puts Orphek's six-channel reef spectrum into a fixture suited to a cube or smaller reef display. Orphek describes a lighting spread of approximately 24 × 24 inches (60 × 60 cm) for SPS and LPS aquariums. The right number of fixtures and mounting height still depend on aquascape, water depth and the corals you keep.
Why reef keepers choose it
- Six separately programmable channels: Two more controlled channels than earlier Atlantik Compact generations give you greater control over the mix of daylight, blue, violet and near-UV/violet output.
- 42 dual-chip LEDs: 84 individual LED chips across the array, with seven dual-chip LEDs on each channel.
- Orphek iCon app: Set schedules and adjust channels on iOS or Android. Control one fixture or coordinate multiple compatible Orphek units.
- Approximately 123–130 W power consumption: A compact alternative to the full-size Atlantik iCon for a smaller footprint.
- Included hanging kit: Hang the fixture with the supplied stainless-steel kit. Orphek mounting arms and brackets are optional accessories.
Make the light fit your reef
The six channels let you create a warm transition at the start and end of the day, a brighter midday period and the blue or violet viewing periods many reef keepers prefer. Orphek also offers preset programs and options for lunar cycles, clouds and acclimation. When changing from another light, use a gradual acclimation schedule and adjust to your corals' response.
| Channel | Spectrum | Role in the display |
|---|---|---|
| 1 | Sunrise and Sunset, approximately 6,000 K | Warm white, orange and the 730 nm component for a softer transition |
| 2 | Solar Noon, approximately 18,000 K | Bright white daylight appearance |
| 3 | Cyan Blue, 470 and 490 nm | Blue-green balance and clear-water appearance |
| 4 | Blue, approximately 450 nm | Deep blue reef appearance |
| 5 | Violet, 420–430 nm | Violet appearance and coral fluorescence |
| 6 | UV/Violet, 405–415 nm | Near-UV/violet appearance and fluorescence |

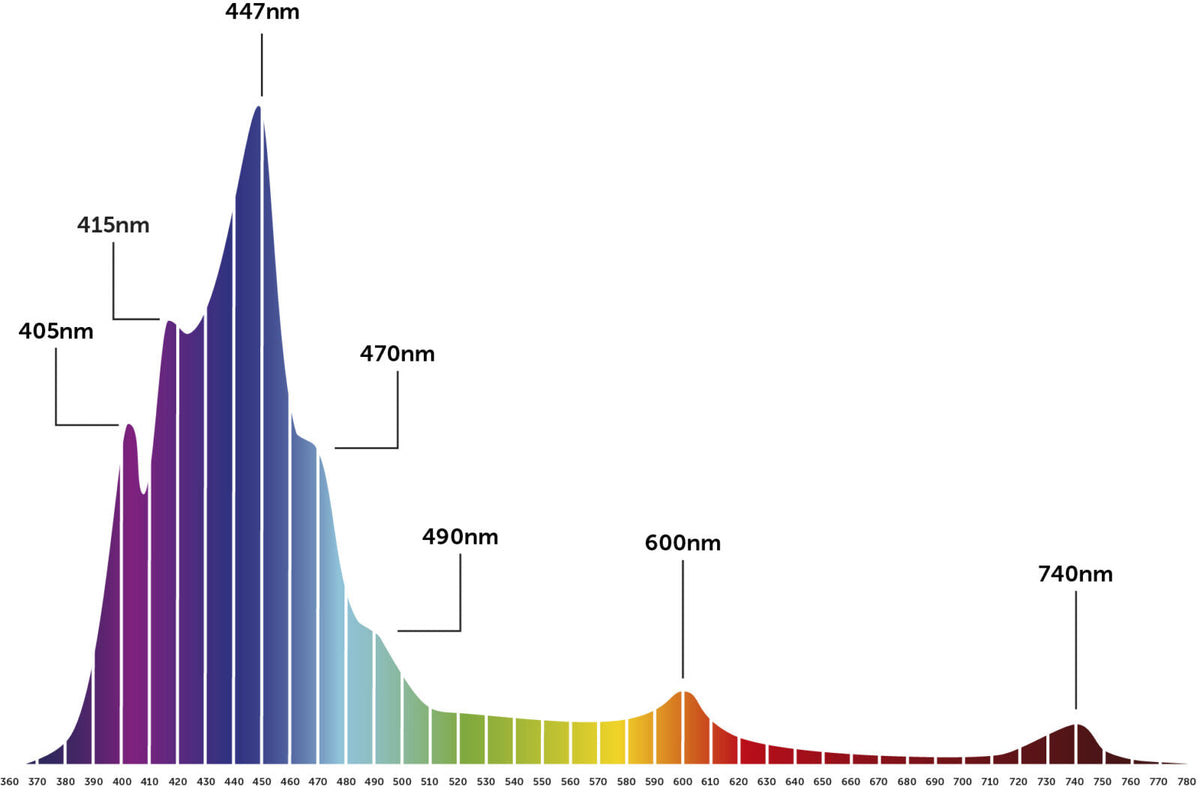

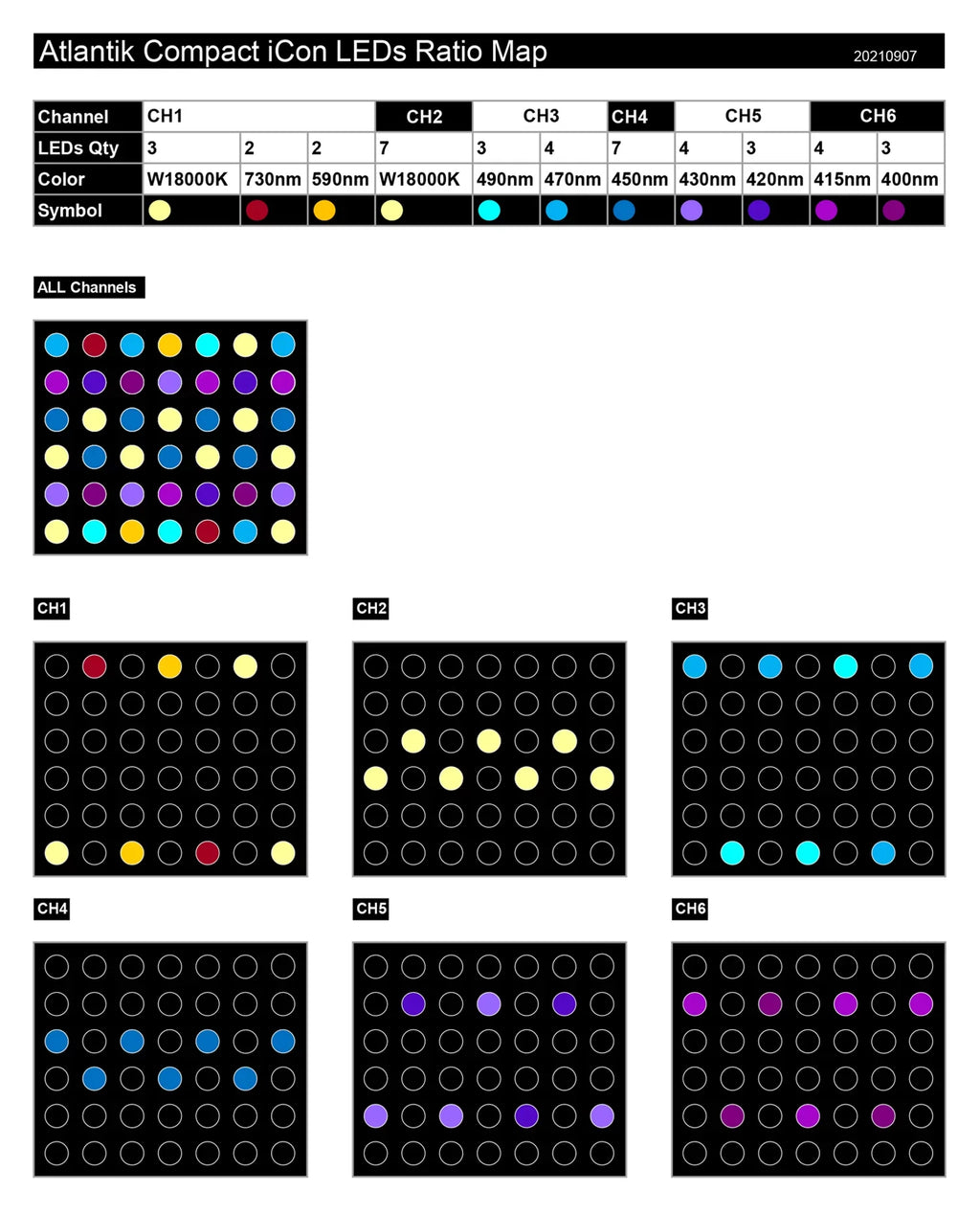

See the spectrum and LED arrangement
These manufacturer graphics show how the channels and LED array are laid out. Some 405 nm and 730 nm emitters may appear faint to the human eye; visible brightness alone does not tell you whether those LEDs are working.
Fixture, cooling and electrical details
The fixture measures approximately 13.58 × 9.37 × 2.11 inches (345 × 238 × 53.6 mm). Orphek lists a light-unit weight of about 8.7 lb and a separate 2.2 lb power supply. An aluminum heat sink and top cover work with two controllable-speed fans for heat management. The fixture has a Mean Well power supply, region-appropriate cord and waterproof connection between light and supply.

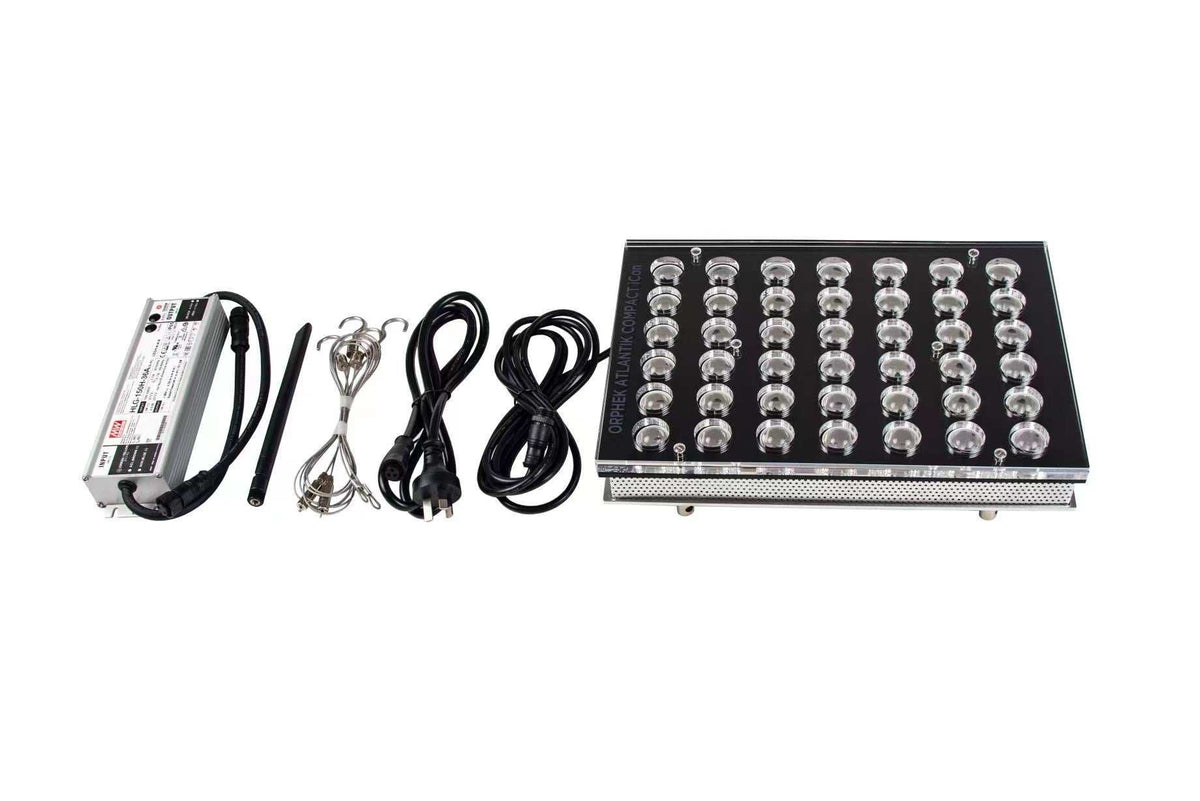

What's included
- Atlantik iCon Compact light fixture
- Power supply and regional power cord
- Waterproof power connection
- Stainless-steel hanging kit
Before ordering: The mounting arm, fixing bracket and additional extension cable are sold separately. Contact us with your tank dimensions and mounting preference if you want help choosing the right setup.
