Upgrade your aquarium filtration with the IceCap Reef Sump V2, available in six sizes for aquariums ranging from 10 to 350 gallons.

Designed for modern reef and marine aquariums, the IceCap Reef Sump V2 combines durable acrylic construction, quiet mechanical filtration, adjustable operating depth, and organized equipment compartments in one clean filtration system. Each model provides dedicated space for a protein skimmer, return pump, heaters, probes, tubing, and additional filtration equipment.

The V2 design removes the built-in freshwater reservoir found on earlier models, creating more usable space inside the sump for filtration equipment. A separate freshwater reservoir and automatic top-off system may be added based on the needs of your aquarium.

Oversized Freight Shipping

United States: A $200 oversized freight shipping fee applies to all IceCap Reef Sump V2 sizes shipped within the United States. This product does not qualify for standard or free shipping.

International Orders: The freight shipping charge shown at checkout is a placeholder only. Final international shipping costs will vary based on the destination, selected sump size, package dimensions, and available carrier service. We will contact the customer with the confirmed shipping cost before the order is processed.

International duties, VAT, taxes, customs charges, brokerage fees, and other import-related expenses are not included unless specifically stated and are the customer’s responsibility.

Key Features

• Durable acrylic construction

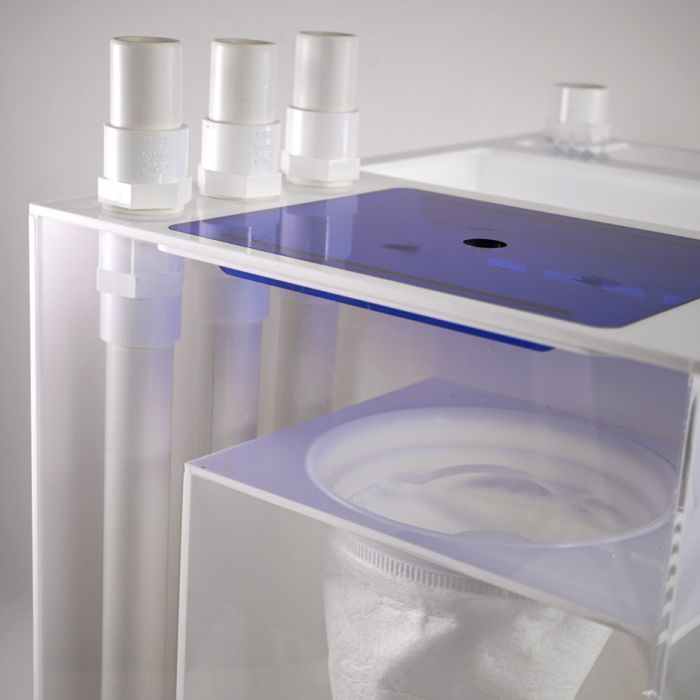

• Bubble-diffusing intake chamber

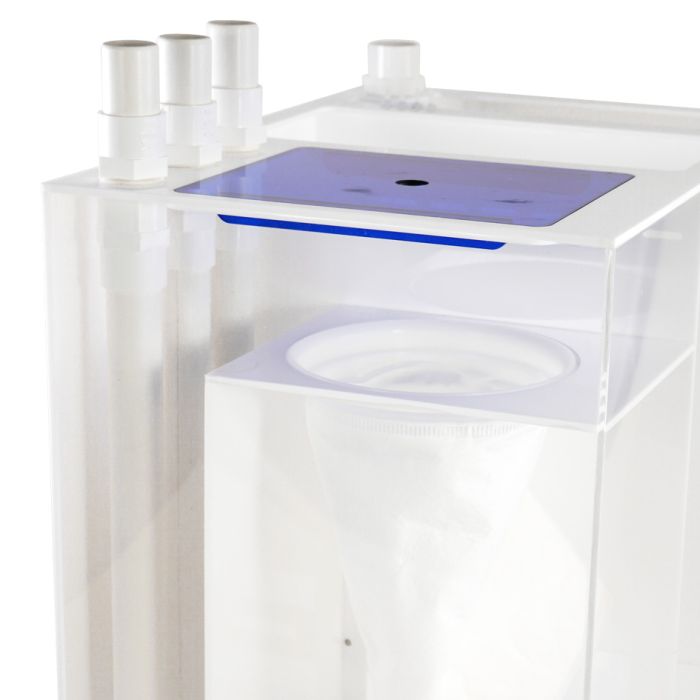

• Quiet spill-over mechanical filtration design
• Included 200-micron filter sock prefilter

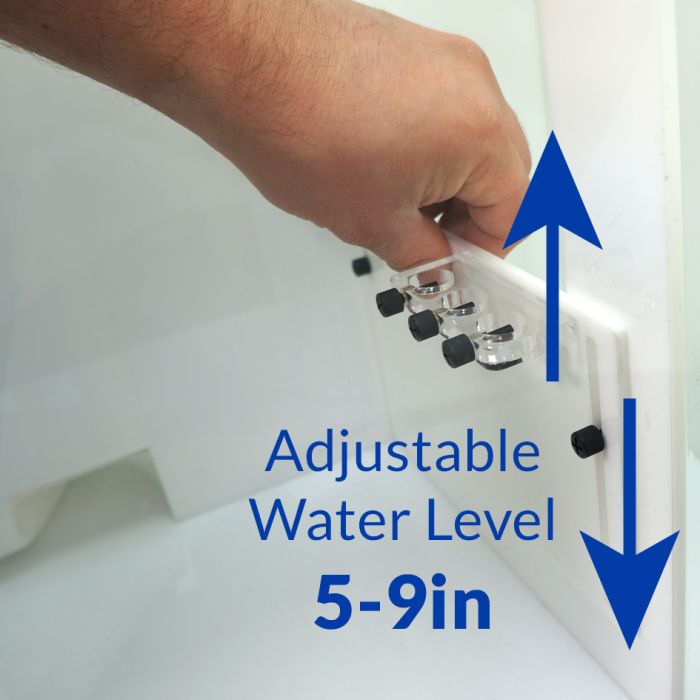

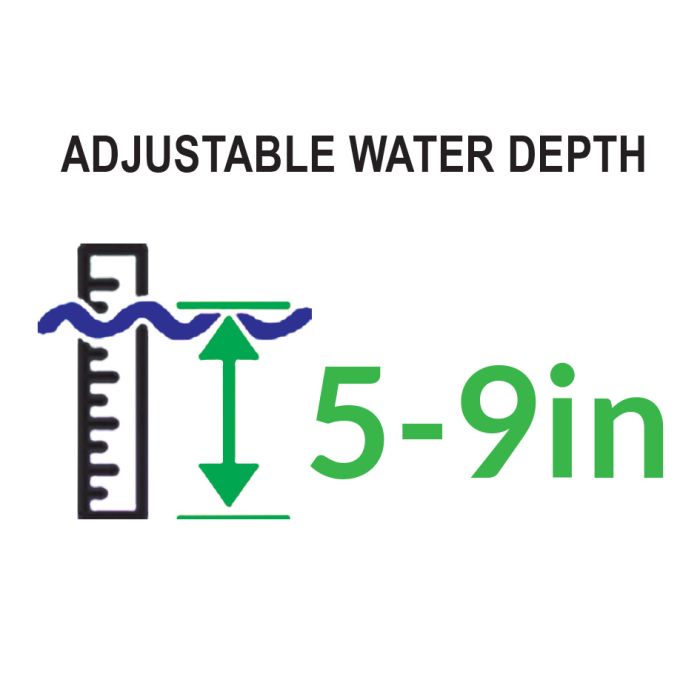

• Adjustable operating water depth from 5 to 9 inches

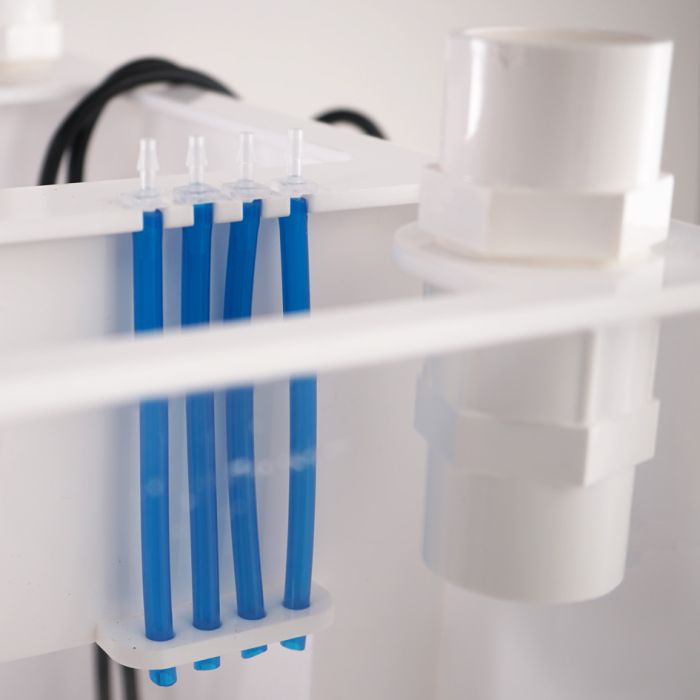

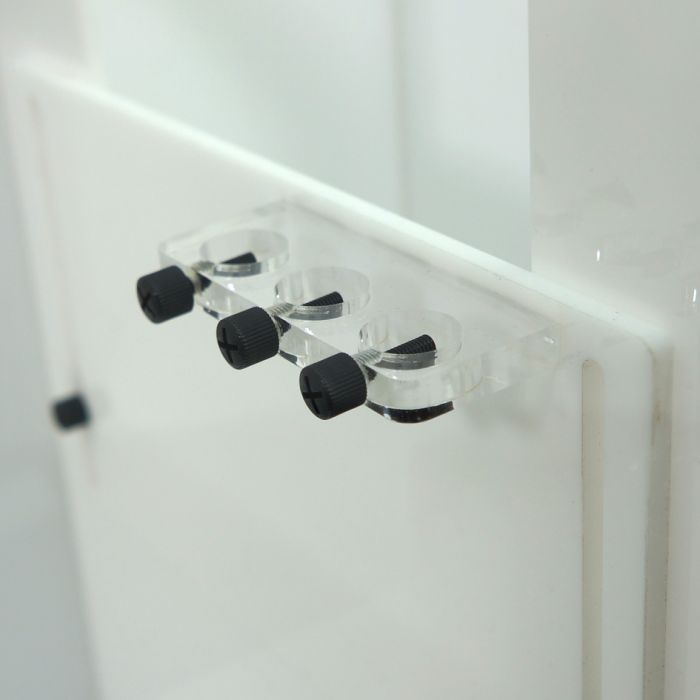

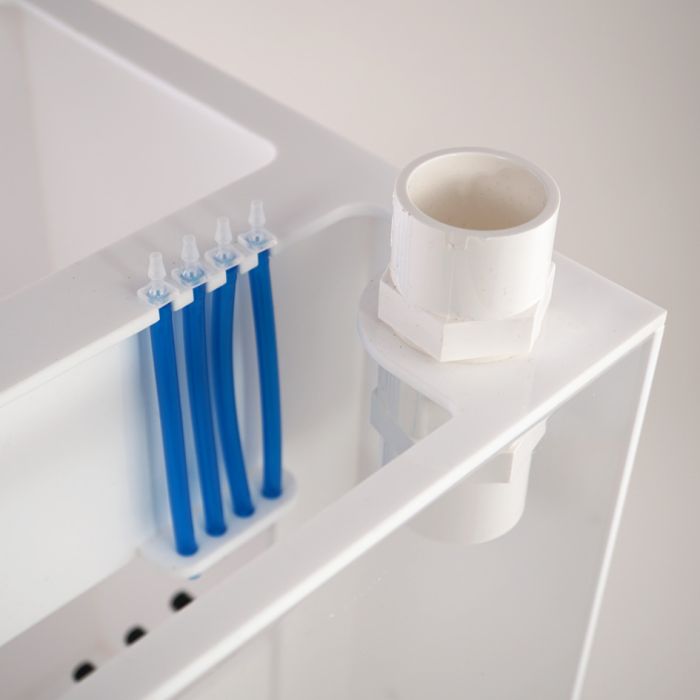

• Built-in probe and dosing-tubing holders

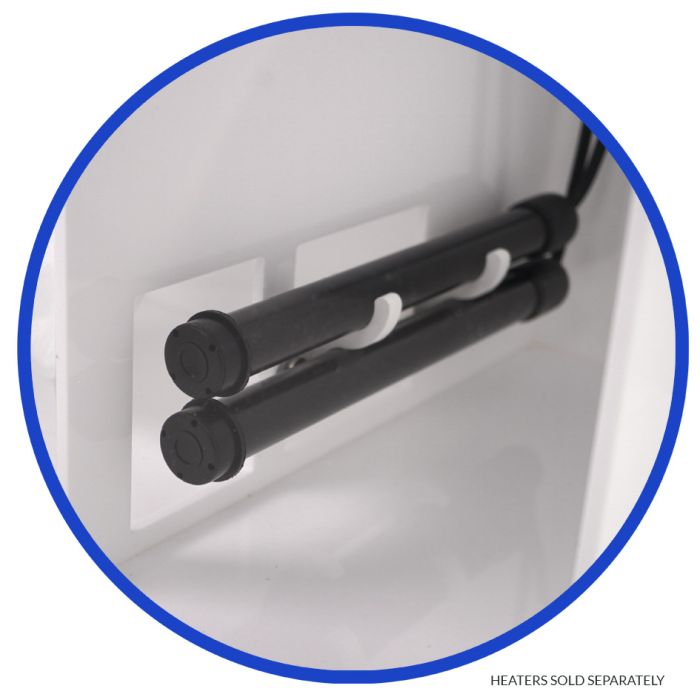

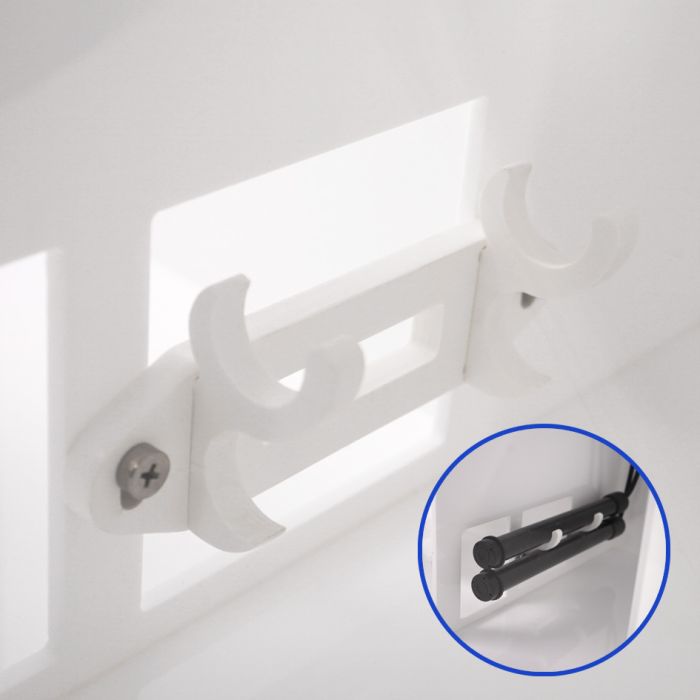

• Integrated holder for two submersible heaters
• Dedicated emergency drain holder

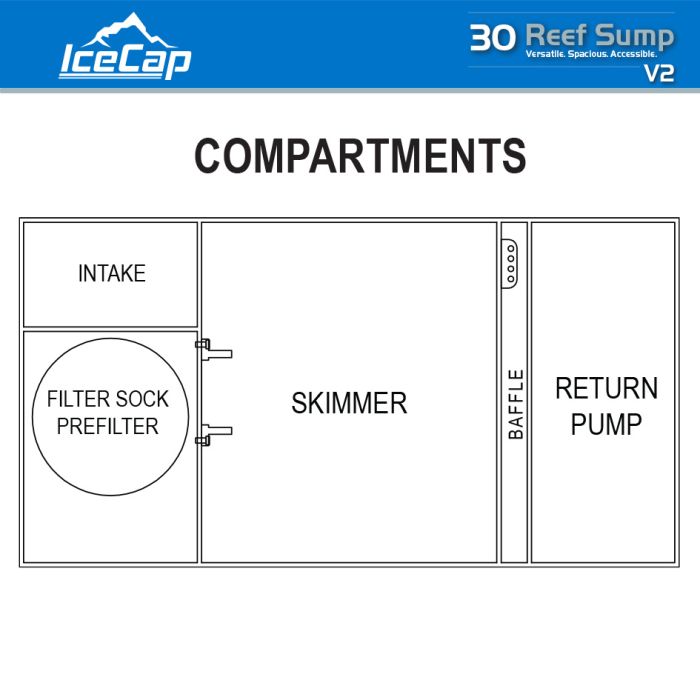

• Spacious skimmer and return-pump compartments

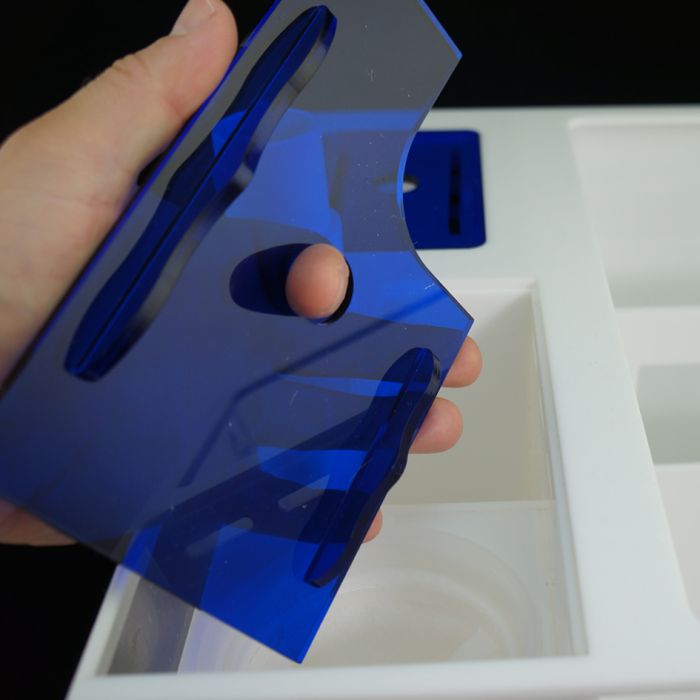

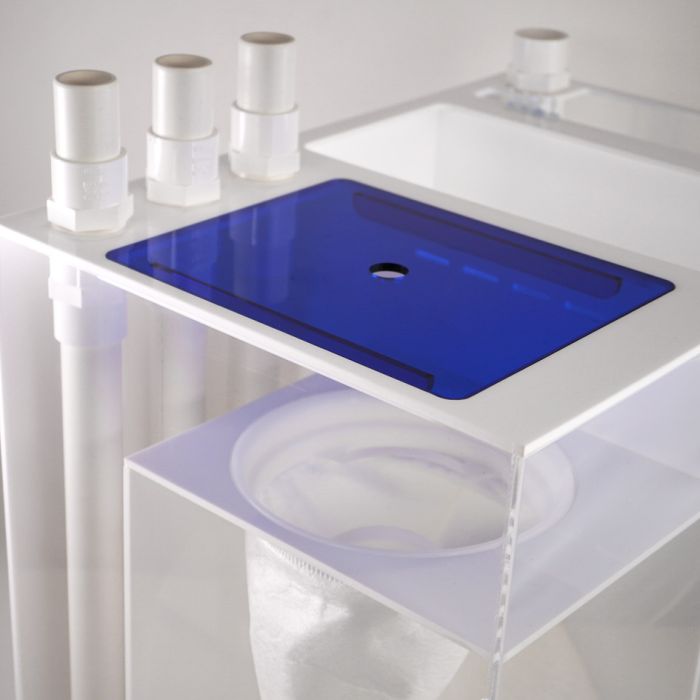

• Compartment lids designed to help reduce operating noise
• Compatible with select Klir drop-in automatic fleece filters
• Six sizes available for aquariums from 10 to 350 gallons

Choose Your Sump Size

IceCap 15 Reef Sump V2

Recommended for aquariums from 10 to 80 gallons.

• Overall dimensions: 15 × 15 × 14 inches
• Intake drains: Two 1-inch drains
• Filter sock: One 4-inch, 200-micron filter sock
• Skimmer section: 9.4 × 9.6 inches
• Return-pump section: 4.7 × 9.4 inches
• Compatible fleece filter: Klir Di-4
• Suggested protein skimmer: IceCap K3-100 INT

IceCap 24 Reef Sump V2

Recommended for aquariums from 60 to 110 gallons.

• Overall dimensions: 24 × 14 × 16 inches
• Intake drains: Two 1-inch drains
• Filter sock: One 4-inch, 200-micron filter sock
• Skimmer section: 11.8 × 13.8 inches
• Return-pump section: 4.7 × 13.8 inches
• Compatible fleece filter: Klir Di-4
• Suggested protein skimmer: IceCap K3-100 INT

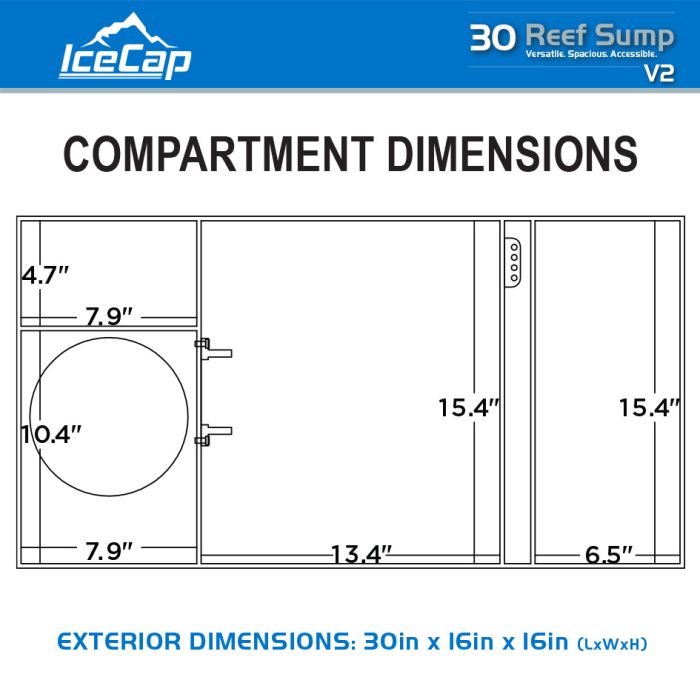

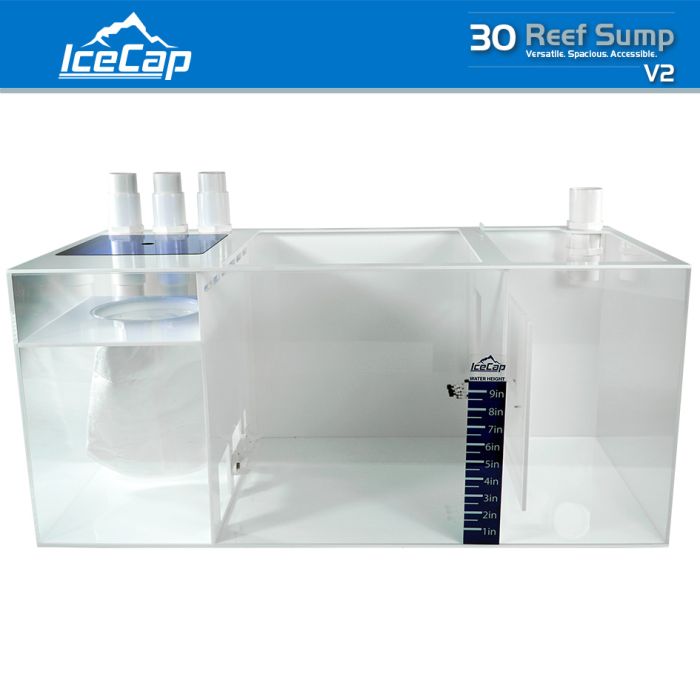

IceCap 30 Reef Sump V2

Recommended for aquariums from 90 to 160 gallons.

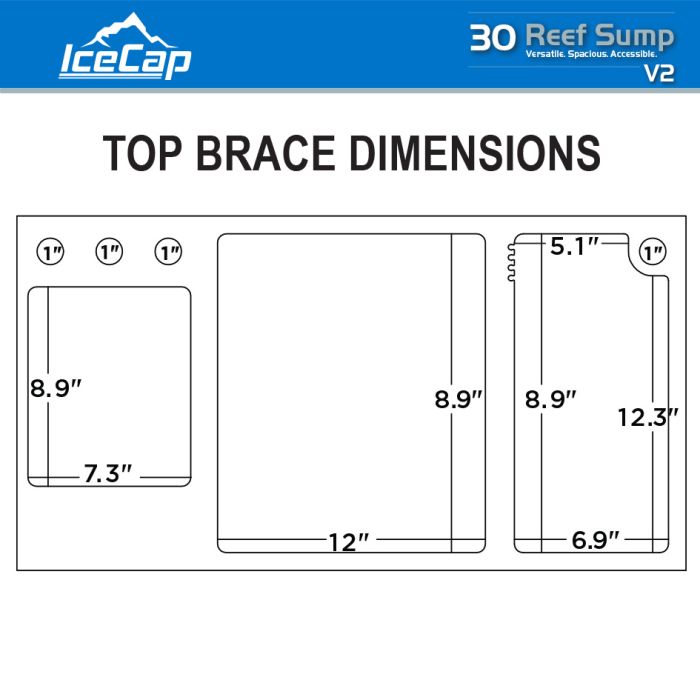

• Overall dimensions: 30 × 16 × 16 inches

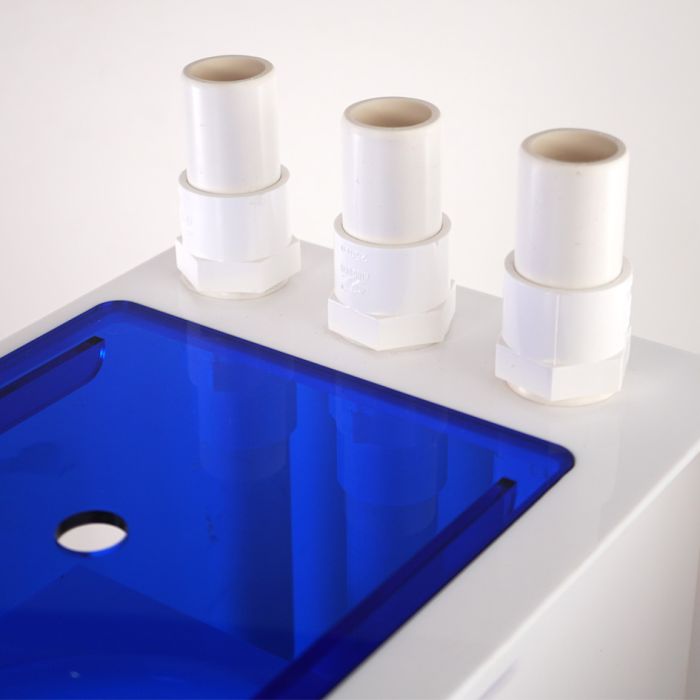

• Intake drains: Three 1-inch drains
• Filter sock: One 7-inch, 200-micron filter sock
• Skimmer section: 13.4 × 15.4 inches
• Return-pump section: 6.5 × 15.4 inches
• Compatible fleece filter: Klir Di-7
• Suggested protein skimmers: IceCap K1-160 or K3-160 INT

IceCap 36 Reef Sump V2

Recommended for aquariums from 120 to 250 gallons.

• Overall dimensions: 36 × 18 × 16 inches
• Intake drains: Three 1.5-inch drains
• Filter sock: One 7-inch, 200-micron filter sock
• Skimmer section: 15.7 × 17.6 inches
• Return-pump section: 7.9 × 17.6 inches
• Compatible fleece filter: Klir Di-7
• Suggested protein skimmers: IceCap K1-160 or K3-160 INT

IceCap 39 Reef Sump V2

Recommended for aquariums from 200 to 300 gallons.

• Overall dimensions: 39 × 22 × 16 inches
• Intake drains: Three 1.5-inch drains
• Filter socks: Two 7-inch, 200-micron filter socks
• Skimmer section: 17 × 21.6 inches
• Return-pump section: 9.8 × 21.6 inches
• Compatible fleece filter: Klir Di-7
• Suggested protein skimmers: IceCap K1-160 or K3-160 INT

IceCap 48 Reef Sump V2

Recommended for aquariums from 250 to 350 gallons.

• Overall dimensions: 48 × 22 × 16 inches
• Intake drains: Three 1.5-inch drains
• Filter socks: Two 7-inch, 200-micron filter socks
• Skimmer section: 24.8 × 21.6 inches
• Return-pump section: 9.8 × 21.6 inches
• Compatible fleece filter: Klir Di-7
• Suggested protein skimmer: IceCap K3-200 INT

Suggested Additions

Complete your sump system with:

• IceCap K3 Series in-sump protein skimmer
• Klir Di-4 or Di-7 automatic fleece filter
• Properly sized controllable return pump
• Separate freshwater ATO reservoir
• Automatic top-off system
• Aquarium heaters and temperature controller
• Replacement 4-inch or 7-inch filter socks

Important Sizing Information

Measure the inside of your aquarium cabinet and the cabinet-door opening before ordering. Confirm that the selected sump can pass through the opening and that adequate clearance remains above and around it for removing filter socks, servicing the protein skimmer, and accessing pumps and plumbing.

The listed aquarium ranges are general equipment-selection guidelines. Choose the appropriate sump according to the aquarium’s actual water volume, livestock load, available cabinet space, drain configuration, and planned filtration equipment.

Protein skimmers, return pumps, automatic fleece filters, freshwater reservoirs, ATO systems, heaters, controllers, plumbing, and other accessories are sold separately unless specifically stated otherwise.
